Off-grid Power Inverter 5kw 10kw On/off Grid Tie Combined With PWM Solar Charge Controller

Short Description:

Pure sine wave inverter

Built-in PWM solar charge controller

Selectable input voltage range for home use

Selectable charging current based on applications

Configurable AC/Solar input priority via LCD setting

Compatible to mains voltage or generator power

Auto restart while AC is recovering

Overload and short circuit protection

Smart battery charger design for optimized battery performance


Product Detail

Product Tags

Parameter

MODEL

YHPS 1.5K-12

YHPS 1.5K-24

YHPS 3K-24

Rated Power

1500VA/1200W

1500VA/1200W

3000VA/2400W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280VAC(for personal computers)
90-280VAC(for home appliances)

Frequency Range

50Hz/60Hz(Auto  sensing)

OUTPUT

AC Voltage Regulation (Batt.Mode)

230VAC±5%

Surge power

3000VA

3000VA

6000VA

Efficiency(Peak)

90%

93%

93%

Transfer Time

10ms(for personal computers)  20ms(for home appliances)

Wave form

Pure Sine Wave

BATTERY

Battery Voltage

12VDC

24VDC

24VDC

Floating Charge Voltage

13.5VDC

27VDC

27VDC

Overcharge Protection

15.0VDC

30VDC

30VDC

SOLAR CHARGER & AC CHARGER

Maximum PV Array Open Circuit Voltage

55VDC

80VDC

80VDC

PV Range @ Operating Voltage

12-20VDC

30-40VDC

30-40VDC

Maximum  Solar  Charging  Current

50A

50A

50A

Maximum  AC  Charging  Current

10A/20A

20A/30A

20A/30A

Maximum Charging Current
(Utility Charging+Solar Charging)

70A

80A

80A

Standby   Power   Consumption

2W

2W

2W

PHYSICAL

Dimension.D*W*H(mm)

305*272*100mm

Net Weight (kgs)

5.2kg

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

0℃ to 55℃

Storage Temperature

-15℃ to 60℃

Features

1.This HPS Pure Sine Wave Inverter ensures the generation of clean and stable power for sensitive electronic devices. It provides a steady flow of energy, minimizing the risk of damage to appliances and maximizing their performance。
2.The built-in PWM solar charge controller efficiently manages the charging of the batteries connected to the system. It regulates the current and voltage of the solar panels to ensure optimal charging and extend battery life.
3.The self-selectable input voltage range feature allows the inverter to be used with different voltage sources, making it suitable for a wide range of home settings. This flexibility ensures compatibility with different electrical systems and voltage standards around the world.
4.With the ability to select the charging current for a specific application, users can customize the charging process for different battery types and capacities. This results in efficient, optimized charging that extends battery life and improves overall performance.
5.LCD settings on the inverter allow the user to configure the priority between AC and solar input. This allows the user to control the energy source and prioritize solar energy when it is available, thus reducing dependence on grid power and maximizing the use of renewable energy.
6.The inverter is designed to be compatible with both utility and generator power, providing versatility and reliable operation. It automatically switches between power sources to ensure an uninterrupted power supply regardless of grid or generator power availability or fluctuations.
7.The auto restart function ensures that the inverter automatically resumes operation when AC power is restored after a power failure. This eliminates the need for manual intervention and ensures a seamless transition to normal operation.
8.Built-in overload and short-circuit protection prevent damage to the inverter and connected equipment due to overload or electrical faults. In such cases, it automatically detects and disconnects the power supply, preventing any potential danger.

Product Picture

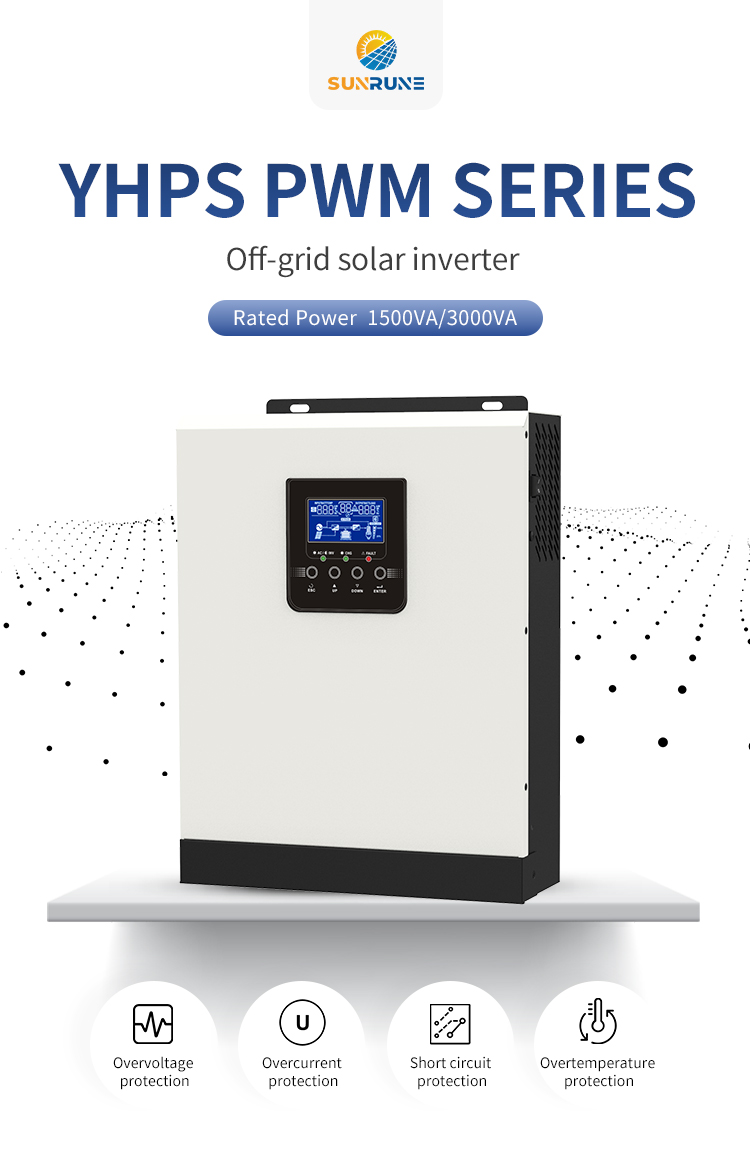

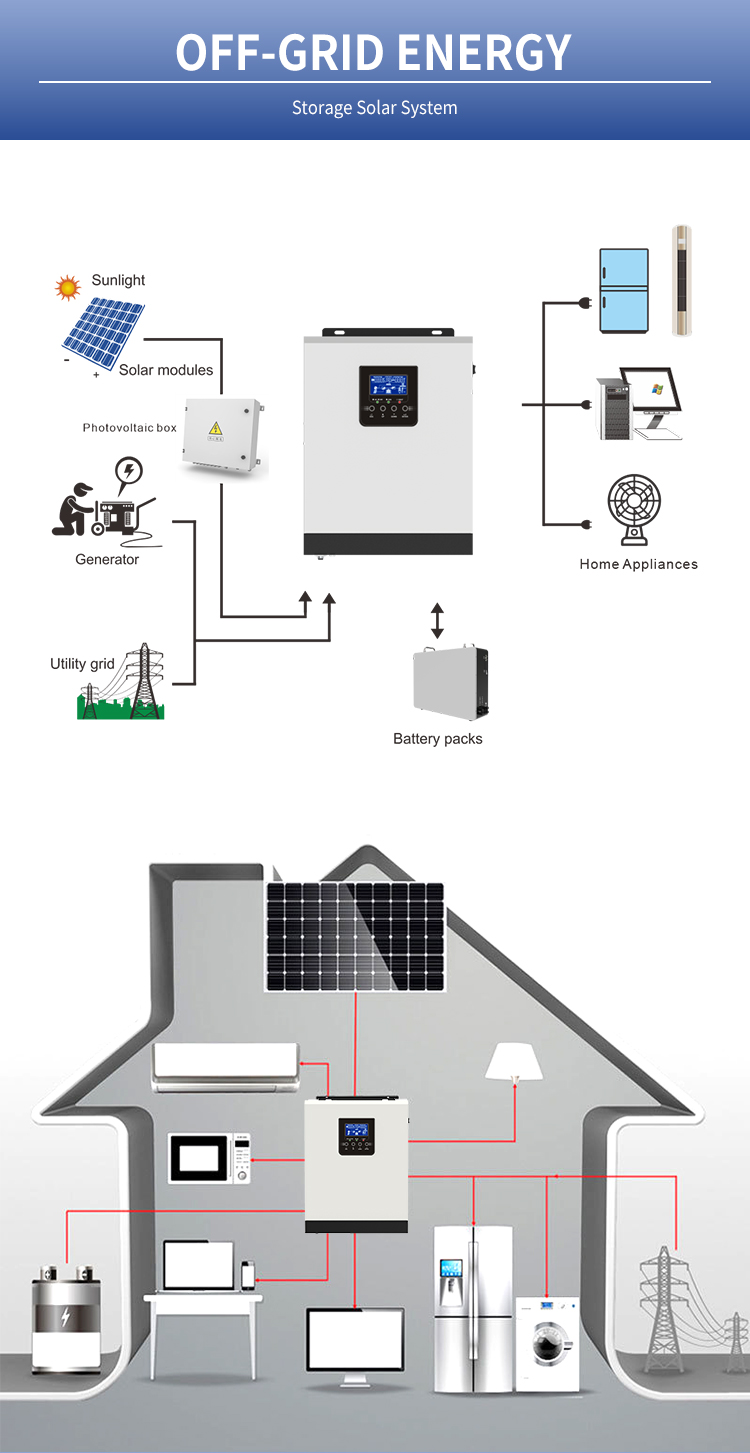

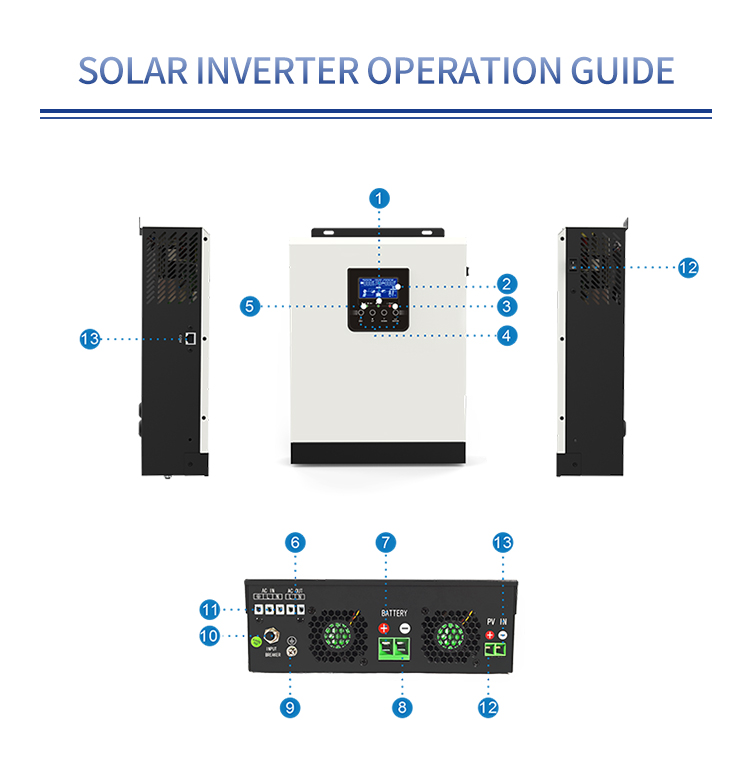

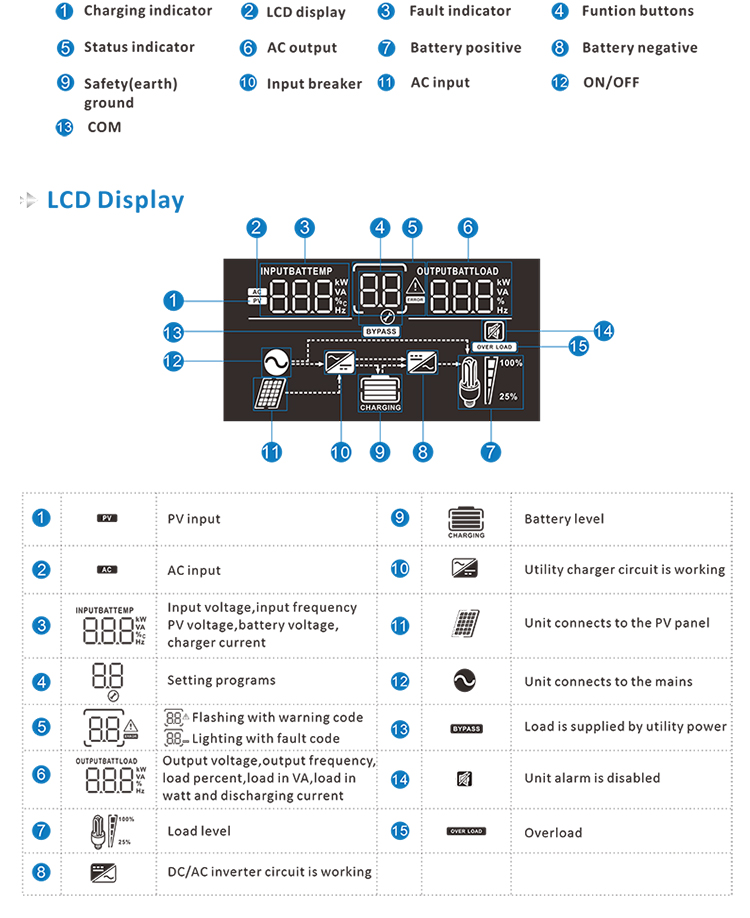

01 solar power inverter 02 off grid inverter 03 solar inverter 04 solar home system
