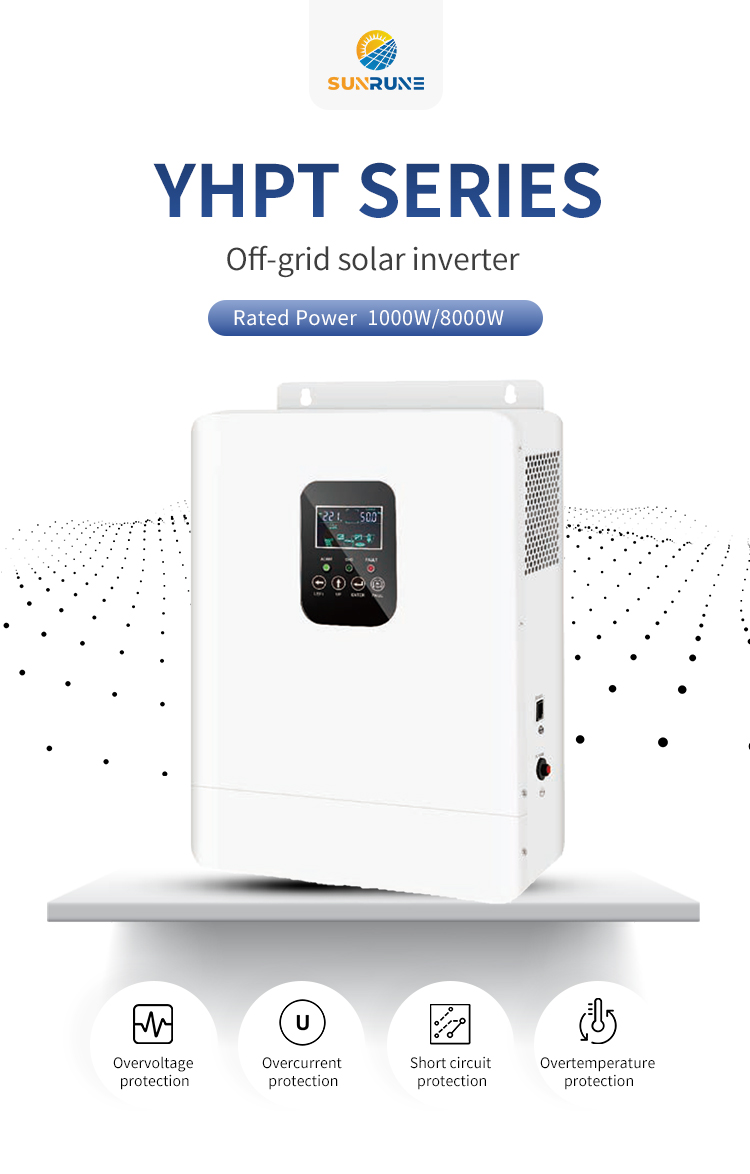

YHPT model Off-grid solar power inverter with mppt charge controller

Short Description:

Pure sine wave output inverter

Low-frequency toroidal transformer for lower losses

Intelligent LCD integrated display

Built-in PWM or MPPT controller optional

AC was charging current 0-30A adjustable, three working modes selectable.

A fault code query function is added to facilitate real-time monitoring of operating conditions

Support diesel or gasoline generators, adapt to any harsh power environment

Combination of industrial and household, wall-mounted design, easy to install.

Send email to us

Subscribe us

Product Detail

Product Tags

Parameter

Model: HP Pro-T		YHPT5L	YHPT5	YHPT7.2	YHPT8
Rated Power		5000W	5000W	7200W	8000W
Peak power (20mS)		15KVA	15KVA	21.6KVA	24KVA
Battery Voltage		48VDC	48VDC	48VDC	48VDC
Product Size(LWHmm)		440x342x101.5		525x355x115
Package Size(LWHmm)		528x420x198		615x435x210
N.W(Kg)		10		14
G.W(Kg)		11		15.5
Installation Method		Wall-Mounted
PV	Charging Mode	MPPT
	MPPT tracking voltage range	60V-140VDC	120V-450VDC
	Rated PV input voltage	60V-90VDC	360VDC
	Max PV Input Voltage Voc (At the lowest temperature)	180VDC	500VDC
	PV Array Maximum Power	3360W	6000W	4000W*2
	MPPT tracking channels (input channels)	1		2
Input	DC Input Voltage Range	42VDC-60VDC
	Rated ACinput voltage	220VAC /230VAC /240VAC
	AC Input Voltage Range	170VAC~280VAC(UPS mode)/120VAC~280VAC(INV mode)
	AC Input Frequency Range	45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
Output	Output efficiency(Battery/PV Mode)	94%(Peak value)
	Output Voltage(Battery/PV Mode)	220VAC±2%/230VAC±2%/240VAC±2%(IN mode)
	Output Frequency(Battery/PV Mode)	50Hz±0.5 or 60Hz±0.5 (INV mode)
	Output Wave(Battery/PV Mode)	Pure Sine Wave
	Efficiency(AC Mode)	≥99%
	Output Voltage(AC Mode)	Follow input
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion Battery/PV Mode)	≤3%(Linear load)
	No load loss(Battery Mode)	≤1% rated power
	No load loss(AC Mode)	≤0.5% rated power(charger does not work in AC mode)
Battery	Battery Type VRLA Battery	Charge Voltage:13.8V; Float Voltage:13.7V(Single battery voltage)
	Maximum charging curent (mains + Pv)	120A	100A	150A
	Max PV Charging Current	60A	100A	150A
	Max AC Charging Current	60A	60A	80A
	Charging method	Three-stage (constant current, constant voltage, floating charge)
Protection	Battery low voltage alarm	Battery undervoltage protection value+0.5V(Single battery voltage)
	Battery low voltage protection	Factory default: 10.5V(Single battery voltage)
	Battery over voltage alarm	Constant charge voltage+0.8V(Single battery voltage)
	Battery over voltage protection	Factory default: 17V(Single battery voltage)
	Battery over voltage recovery voltage	Battery overvoltage protection value-1V(Single battery voltage)
	Overload power protection	Automatic protection (battery mode), circuit breaker orinsurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C(Shut down output)
Working Mode		Mains priority/Solar priority/Battery priority(Can be set)
Transfer Time		10ms (typical value)
Display		LCD+LED
Communication(Optional)		RS485/APP(WIFI monitoring or GPRS monitoring)
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Elevation	2000m(More than derating)
	Humidity	0%~95%(No condensation)

Features

1.This HPT model inverter is a pure sine wave output inverter ensures a smooth and reliable power supply, eliminating problems such as harmonic distortion and voltage fluctuations.
2.The low-frequency toroidal transformer greatly reduces energy loss and improves the overall efficiency of the system.
3.Intelligent LCD integrated display provides a user-friendly interface for monitoring and controlling the system, indicating important information such as input/output voltage, battery status, and load status.
4.Optional built-in PWM or MPPT controllers are available to maximize power extraction from the solar panels and maximize the efficiency of the PV system.
5.The AC charging current is regulated from 0 to 30A, allowing the charging rate to be customized to the specific requirements of the system. In addition, the system offers three selectable operating modes to meet different energy requirements.
6. A new fault code lookup feature monitors the system in real-time, making it easy to identify and troubleshoot any problems that man may arise.

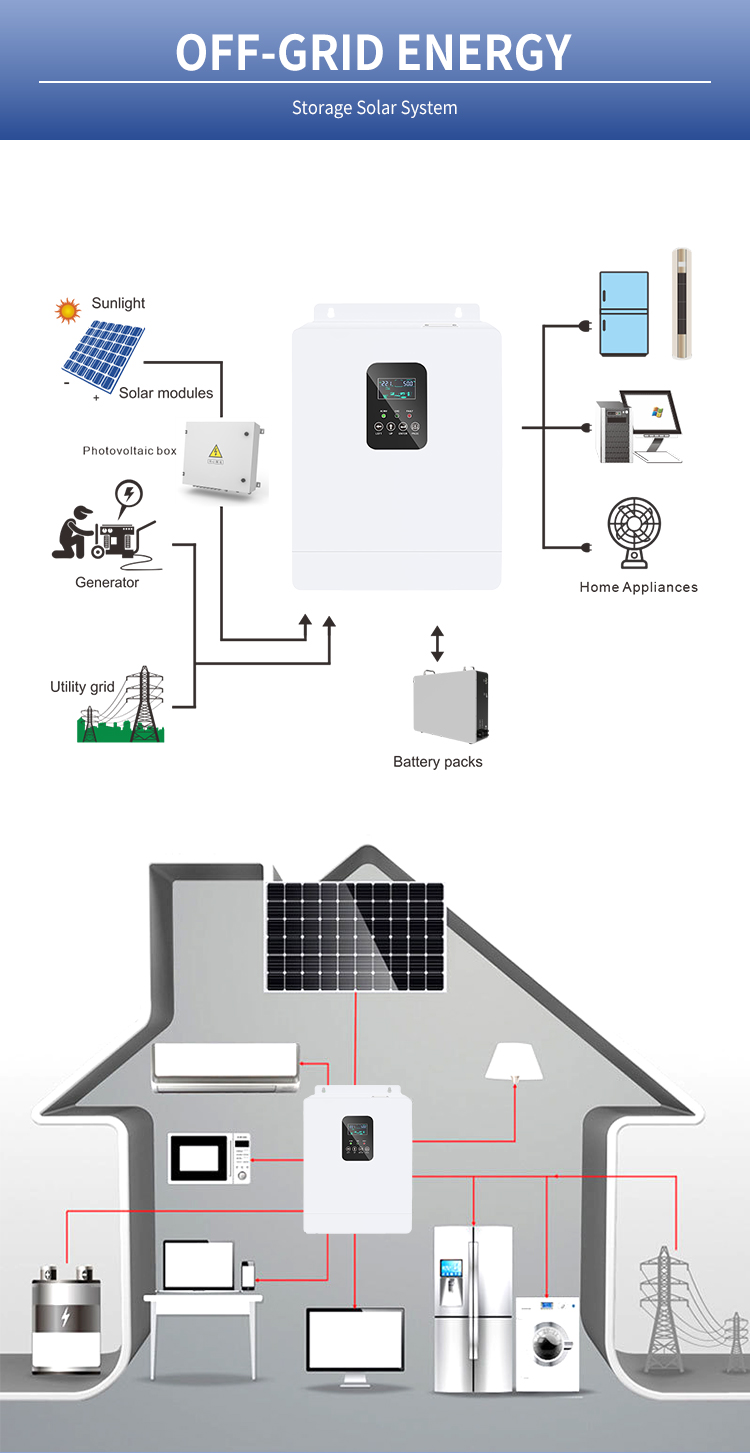

7. Our solutions support the use of diesel or gasoline generators to ensure an uninterrupted power supply even in harsh environments. This versatility allows our systems to adapt to any harsh power environment.
