Subscribe us| Model No. |
YZ15KTL |
YZ20KTL |
YZ25KTL |
| Input(DC) | |||
| Max DC power (W) |
22500 |
30000 |
30000 |
| Max DC voltage (Vdc) |
1000 |
1000 |
1000 |
| Min working voltage (Vdc) |
200 |
200 |
200 |
| MPPT voltage range (Vdc) |
200~850 |
200~850 |
200~850 |
| Max input current / per string(A) |
26/20 |
26/26 |
36/26 |
| Number of MPP trackers |
2 |
2 |
2 |
| Number of input string |
3 |
4 |
4 |
| Output (AC) | |||
| AC nominal power (W) |
15000 |
20000 |
25000 |
| Max AC apparent power (VA) |
16500 |
22000 |
27500 |
| Max output current (A) |
23 |
30 |
36 |
| Nominal AC output |
50/60 Hz; 400 Vac |
||
| AC output range |
45/55 Hz ; 280 ~ 490 Vac (Adj) |
||
| Power factor |
0.8leading...0.8laging |
||
| Harmonics |
<1.5% |
||
| Grid type |
3 W/N/PE |
||
| Efficiency | |||
| Max efficiency |
98.50% |
98.60% |
98.70% |
| Euro eficiency |
98.00% |
98.10% |
98.20% |
| MPPT effidiency |
99.90% |
99.90% |
99.90% |
| Safety and Protection | |||
| DC reverse-polarity protection |
yes |
||
| DC breaker |
yes |
||
| DC/AC SPD |
yes |
||
| Leakage current protection |
yes |
||
| Insulation Impedance Detection |
yes |
||
| Residual Current protection |
yes |
||
| General Parameters | |||
| Dimension (W/H/D)(mm) |
520*510*155 |
||
| Weight (kg) |
25 |
||
| Operating temperature range (ºC) |
-25 ~ +60 |
||
| Degree of protection |
IP65 |
||
| Cooling concept |
Natural convection |
||
| Topology |
Transformerless |
||
| Display |
LCD |
||
| Humidity |
0-95%, no condensation |
||
| Communication |
Standard WiFi; GPRS/LAN(optional) |
||
| Warranty |
Standard 5 years; 7/10 years optional |
||
| Certificates and Approvals | |||
Feature

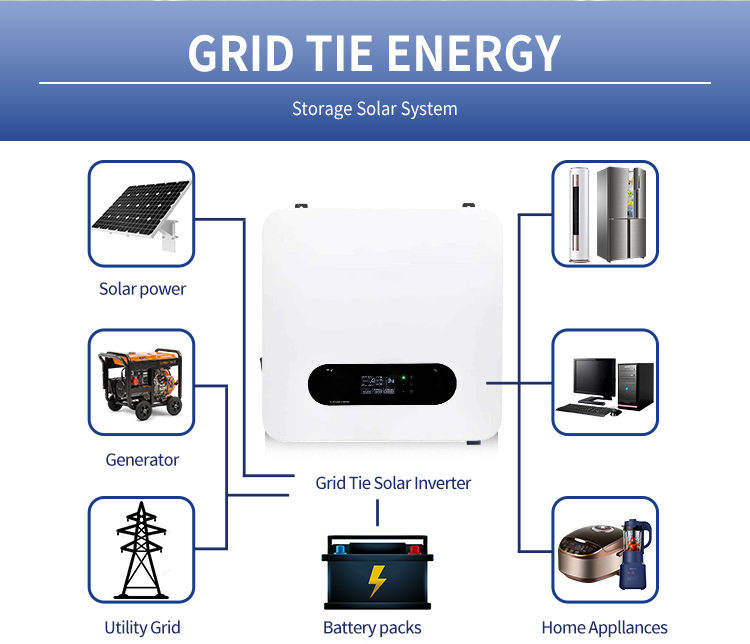

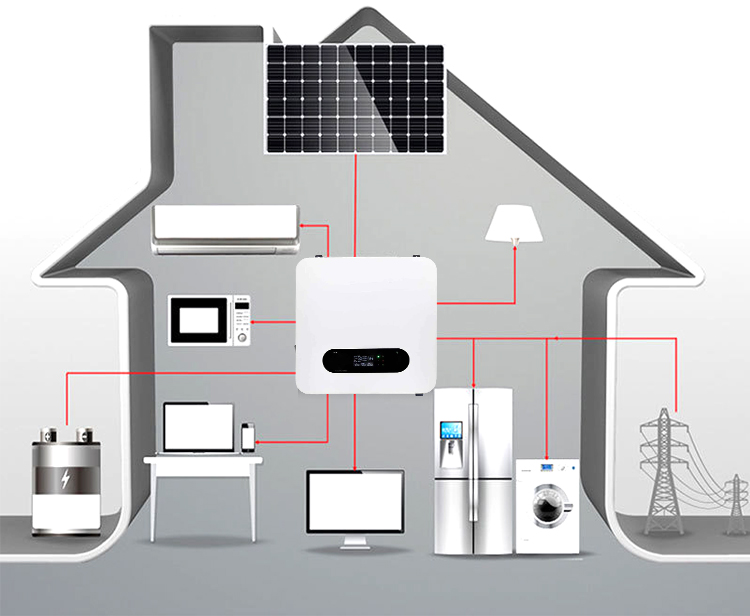

1. The SUNRUNE 3-phase high performance grid inverter is designed to efficiently convert solar energy into usable electrical power, making it an excellent choice for residential and commercial solar installations.
2. The simple and easy installation process of the SUNRUNE inverter makes it possible for a single person to complete the installation without the need for additional assistance. This not only saves time and effort, but also reduces installation costs.
3. With an IP65 waterproof rating, the SUNRUNE inverter is well equipped to withstand harsh weather conditions, making it suitable for both indoor and outdoor installations.
4. As well as being easy to use, the SUNRUNE inverter is manufactured using high quality materials and components to ensure exceptional performance and long life. This reliability ensures that your solar power system will continue to generate electricity for years to come.
5. Maintenance of the SUNRUNE inverter is straightforward thanks to the instruction manual supplied, which guides the user through all the necessary maintenance tasks. This enables users to keep the inverter operating at its optimum efficiency without the need for professional assistance.
6. The SUNRUNE inverter has been thoroughly tested and meets international quality standards such as TUV and BVDekra. These certifications demonstrate the inverter's high reliability, safety and compliance with industry regulations.

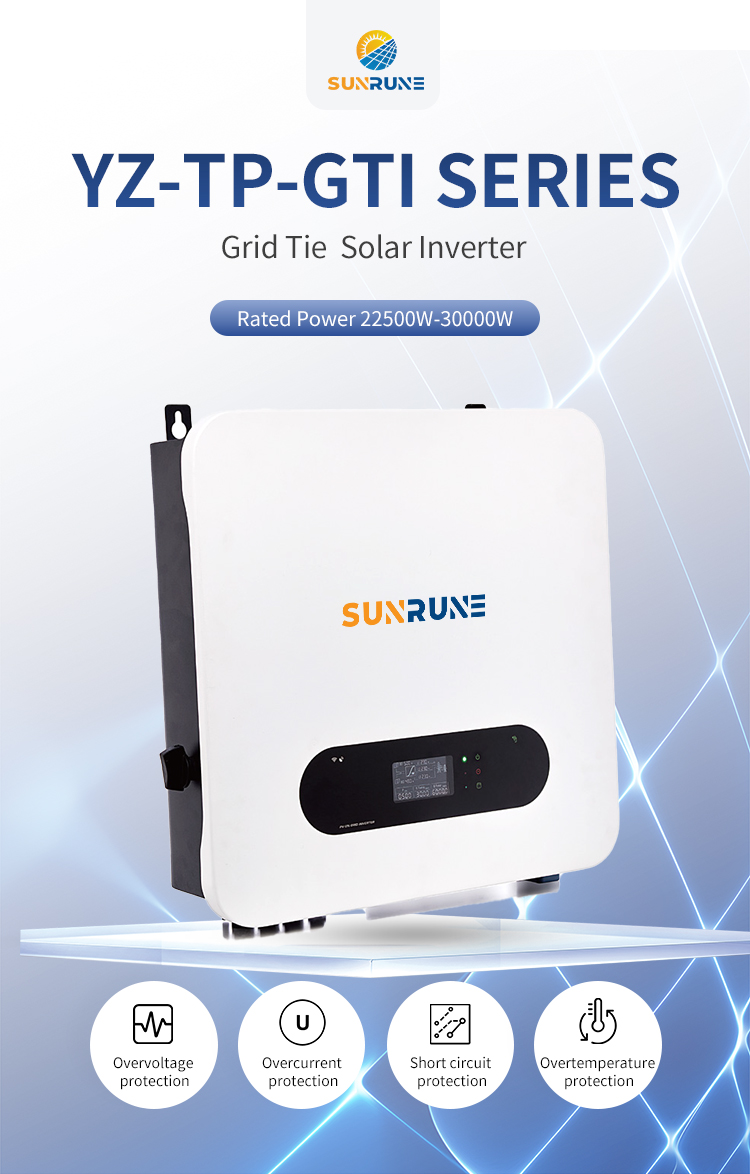

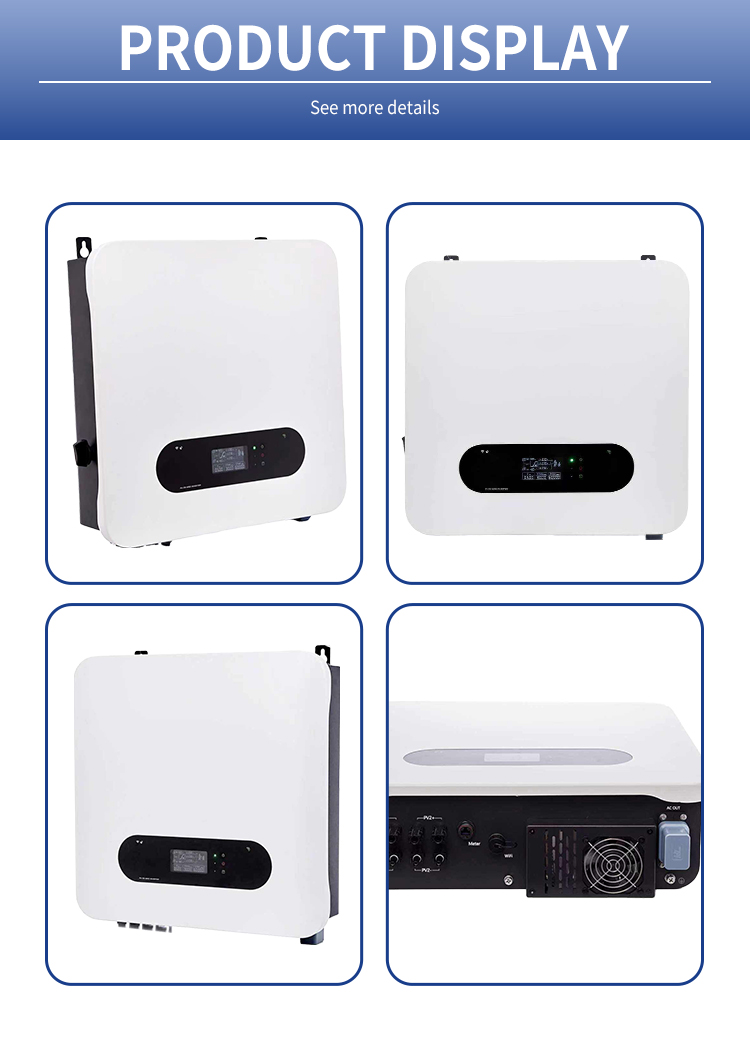

Product picture
