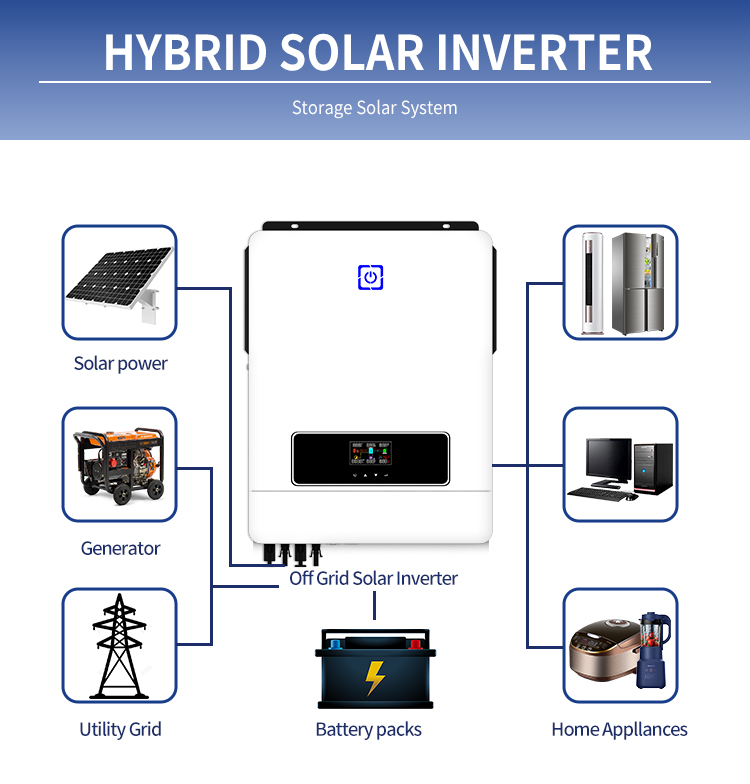

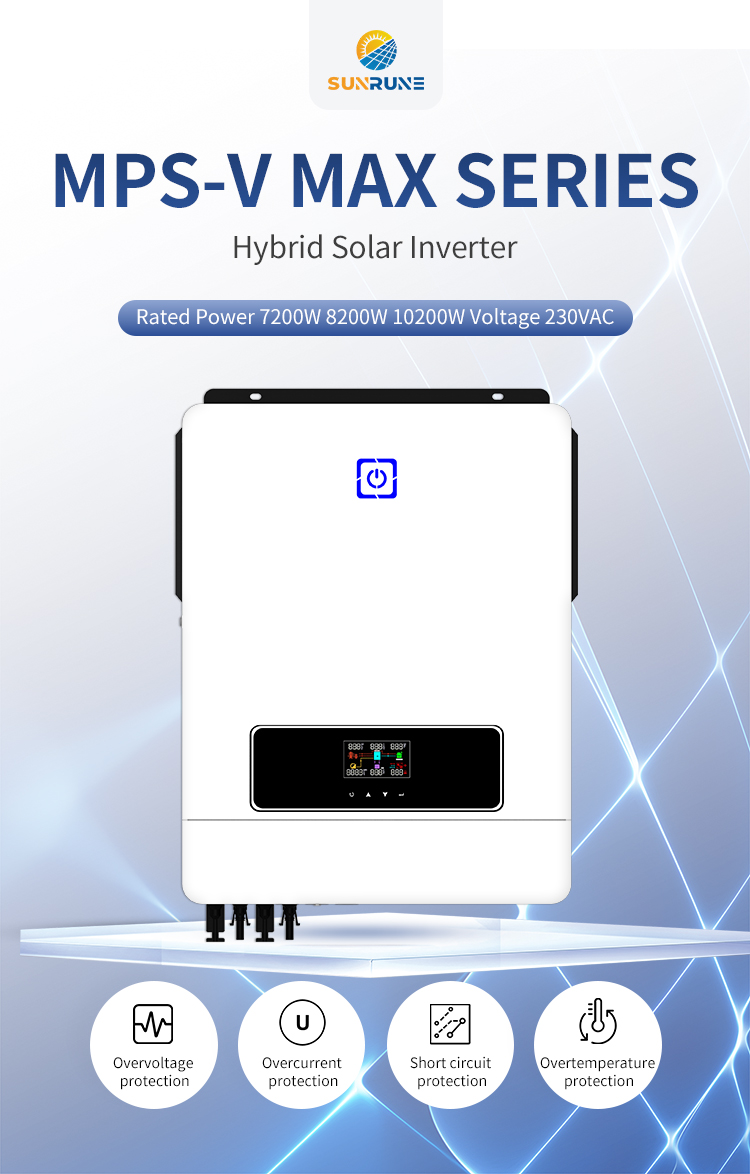

1. The Pure Sine Wave Solar Inverter. This innovative device is perfect for both on and off-grid energy solutions, providing reliable and efficient power in any situation.
2. With a built-in MPPT solar charge controller rated at 160A for 7.2KW/8.2KW and 180A for 10.2KW.
3. This solar inverter has the capability to harness the power of the sun and convert it into clean energy for your home, business.
4. Equipped with an output power factor of 1.0, this solar inverter is capable of delivering full power to any device or appliance you want to power
5. Inverter providing versatility and adaptability to different types of solar panels.

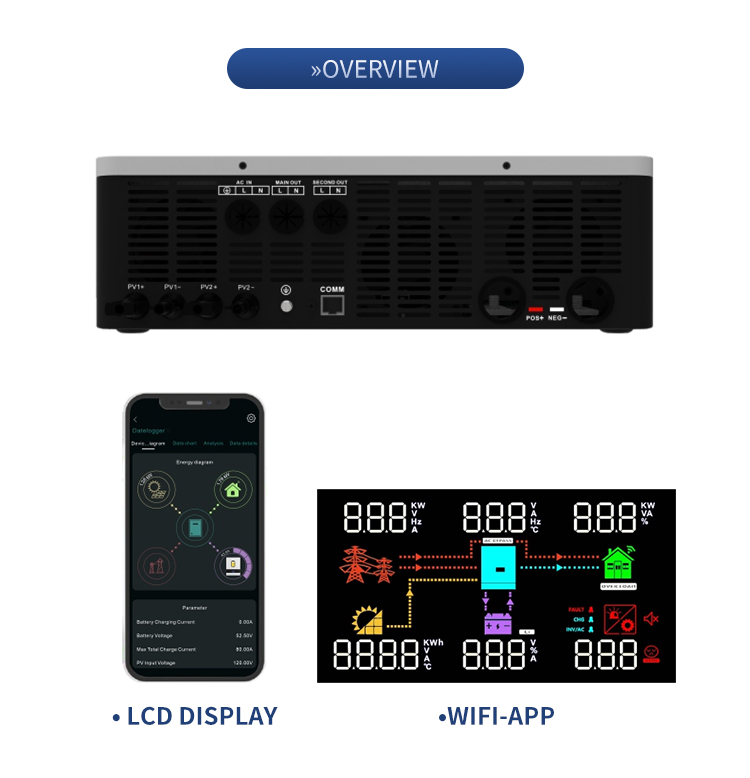

6. Our Pure Sine Wave Solar Inverter also boasts of advanced features such as WIFI and GPRS connectivity for IOS and Android, as well as a built-in anti-dusk kit that ensures its durability and reliability even in the harshest of environments.
7. The feature of this excellent device include a smart battery charge design that optimises battery life, dual output, one-click restoration to factory settings and built-in lithium battery automatic activation.
8. With the Pure Sine Wave Solar Inverter, you can now enjoy constant and reliable power without the need for mains electricity. Harness the power of the sun and enjoy the freedom that comes with a clean and renewable energy source. Order yours now and experience the true power of solar.
9. Smart battery charge design to optimize battery life,One-click restoration to factory Settings.
10. Built-in Lithium battery automatic activation,with the touch buttom.

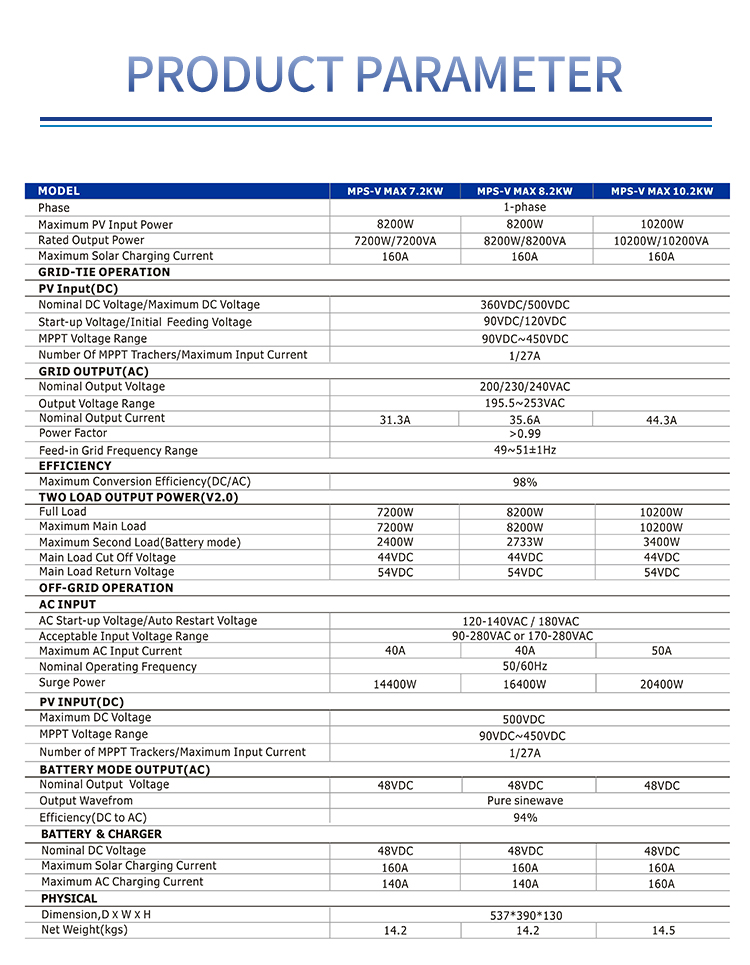

Product Paraments
| MODEL | MPS-V MAX 7.2KW | MPS-V MAX 8.2KW | MPS-V MAX 10.2KW |
| Phase | 1-phase | ||
| Maximum PV Input Power | 7200W | 8200W | 10200W |
| Rated Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA |
| Maximum Solar Charging Current | 160A | ||
| PV Input(DC) | |||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT Trackers /Maximum Input Current | 1/27A | ||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 195~253VAC | ||
| Nominal Output Current | 31.3A | 35.6A | 44.3A |
| Power Factor | >0.99 | ||
| Feed-in Grid Frequency Range | 49~51±1Hz | ||
| EFFICIENCY | |||
| Battery Voltage | 12VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC |
| Overcharge Protection | 15VDC | 30VDC | 60VDC |
| Maximum charge current | 10A/20A | 20A/30A | 10A/20A/30A/40A/50AV60A |
| SOLAR CHARGER & AC CHARGER | |||
| Maximum Conversion Efficiency(DC/AC) | 98% | ||
| TWO LOAD OUTPUT POWER | |||
| Full Load | 7200W | 8200W | 10200W |
| Maximum Second Load(battery mode) | 2400W | 2733W | 3400W |
| Main Load Cut Off Voltage | 44VDC | ||
| Main Load Return Voltage | 54VDC | ||
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage/ Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Maximum AC Input Current | 40A | 40A | 50A |
| Nominal operating frequency | 50/60Hz | ||
| Surge power | 14400W | 16400W | 20400W |
| PV INPUT(DC) | |||
| Maximum DC Voltage | 500VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT trackers /Maximum Input Current | 1/27A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Waveform | Pure sine wave | ||
| Efficiency(DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48V | ||
| Maximum Solar Charging Current | 160A | ||
| Maximum AC Charging Current | 140A | ||
| PHYSICAL | |||
| Dimension,D*W*H | 537*390*130mm | ||
| Net Weight(kgs) | 48VDC | ||

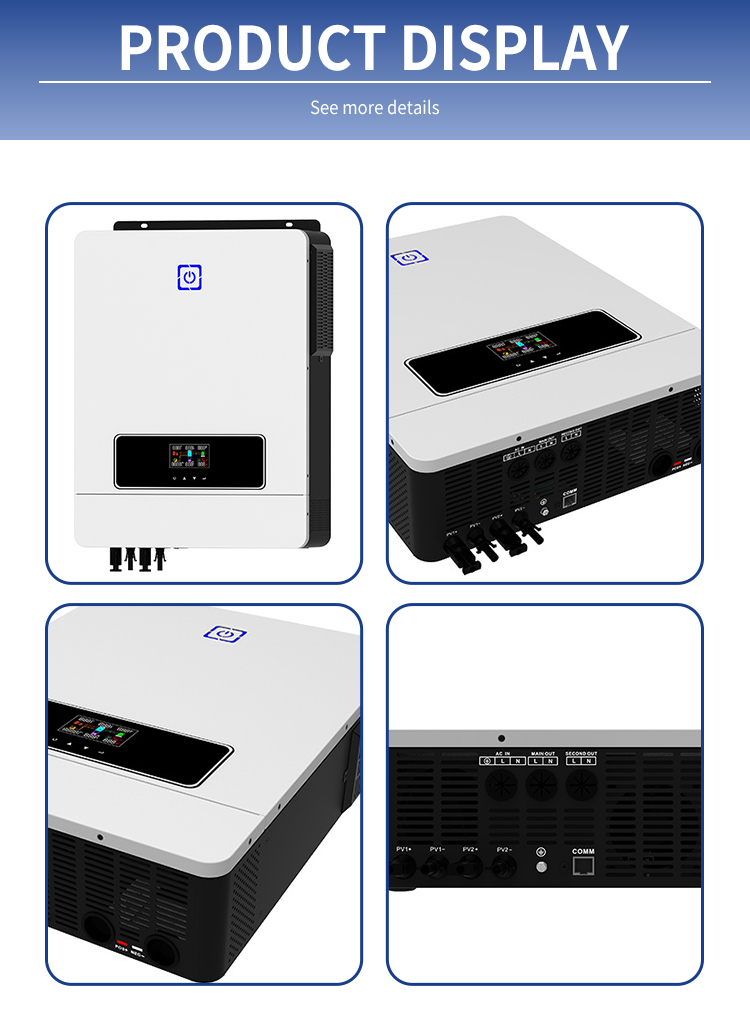

Product picture
