Subscribe us| Model |
YECO-3.6KW |
YECO-6.2KW |
| Phase |
1-phase |
|
| Maximum PV Input Power |
6200W |
6500W |
| Rated Output Power |
3600W |
6200W |
| Maximum Solar Charging Current |
120A |
120A |
|
GRID-TIE OPERATION PV Input(DC) |
||
| Nominal DC Voltage/Maximum DC Voltage |
360VDC/500VDC |
|
| Start-up Voltage/initial Feeding Voltage |
60VDC/ 90VDC |
|
| MPPT Voltage Range |
60-450VDC |
|
| Number of MPPT Trackers/Maximum Input Current |
1/23A |
1/23A |
|
GRID OUTPUT(AC) |
||
| Nominal Output Voltage |
220/230/240VAC |
|
| Output Voltage Range |
195.5~253VAC |
|
| Nominal Output Current |
15.7A 27.0A |
|
| Power Factor |
>0.99 |
|
| Feed-in Grid Frequency Range |
49-51±1Hz |
|
|
EFFICIENCY |
||
| Maximum Conversion Efficiency( Solar to AC) |
98% |
|
|
TWO LOAD OUTPUT POWER(V2.0) |
||
| Full Load |
3600W |
6200W |
| Maximum Main Load |
3600W |
6200W |
| Maximum Second Load(battery mode) |
1200W |
2067W |
| Main Load Cut off Voltage |
22VDC |
44VDC |
| Main Load Return Voltage |
26VDC |
52VDC |
| OFF-GRID OPERATON AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage |
120-140VAC/180VAC |
|
| Acceptable Input Voltage Range |
90-280VAC or 170-280VAC |
|
| Maximum AC Input Current |
40A |
50A |
| Nominal Operating Frequency |
50/60Hz |
|
| Surge power |
7200W |
10000W |
| BATTERY MODE OUTPUT (AC) | ||
| Nominal Output Voltage |
220/230/240VAC |
|
| Output Waveform |
Pure Sine Wave |
|
| Efficiency ( DC to AC) |
94% |
|
| BATTERY&CHARGER | ||
| Nominal DC Voltage |
24VDC |
48VDC |
| Maximum Charging Current (Solar to AC) |
120A |
120A |
| Maximum AC Charging Cument |
100A |
|
|
GENERAL PHYSICAL |
||
| Dimension,D x W x H（mm） |
420*310*110 |
|
| Carton Dimension,Dx Wx H(mm) |
500*415*180 |
|
| Net Weight(kgs） |
8.8 |
9.8 |
| Gross Weight(kgs） |
10 |
11 |
| INTERFACE |
|
|
| Communicaton Port |
RS232/WIFI/GPRS/LITHIUM BATTERY |
|
Feature
1. This on/grid solar inverter has an output power factor of 1.0, which means it can deliver the maximum power for which it is rated without any apparent loss or distortion in the output waveform.
2. With the ability to operate without a battery, the hybrid solar inverter ensures a continuous power supply even without a backup energy storage system.
3. This hybrid inverter offers convenient WIFI and GPRS connectivity options specifically designed for Android devices, allowing users to easily monitor and control the device remotely from their smartphone or tablet.
4. The one-key restore feature simplifies the process of resetting the inverter to its original factory settings, making it effortless and hassle-free.

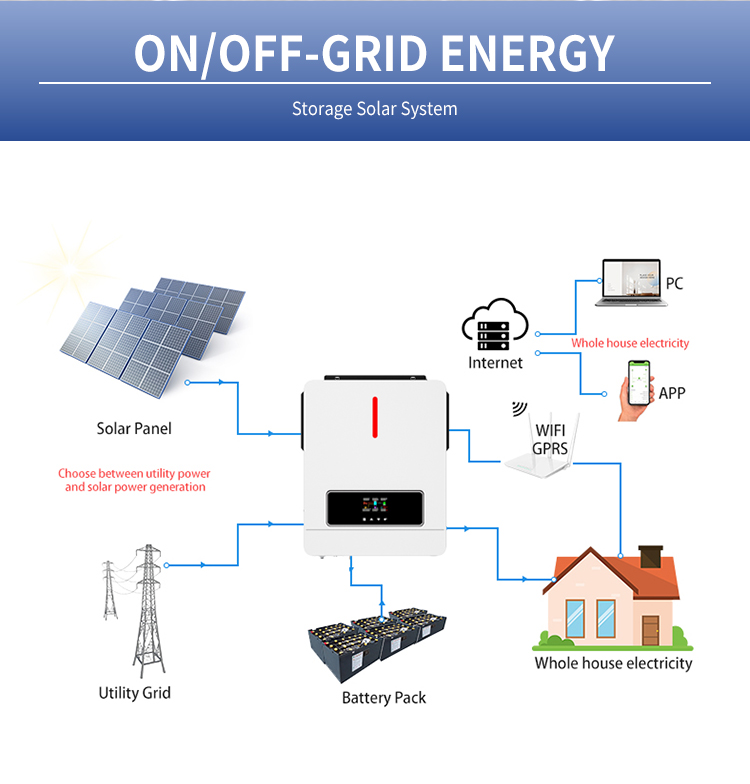

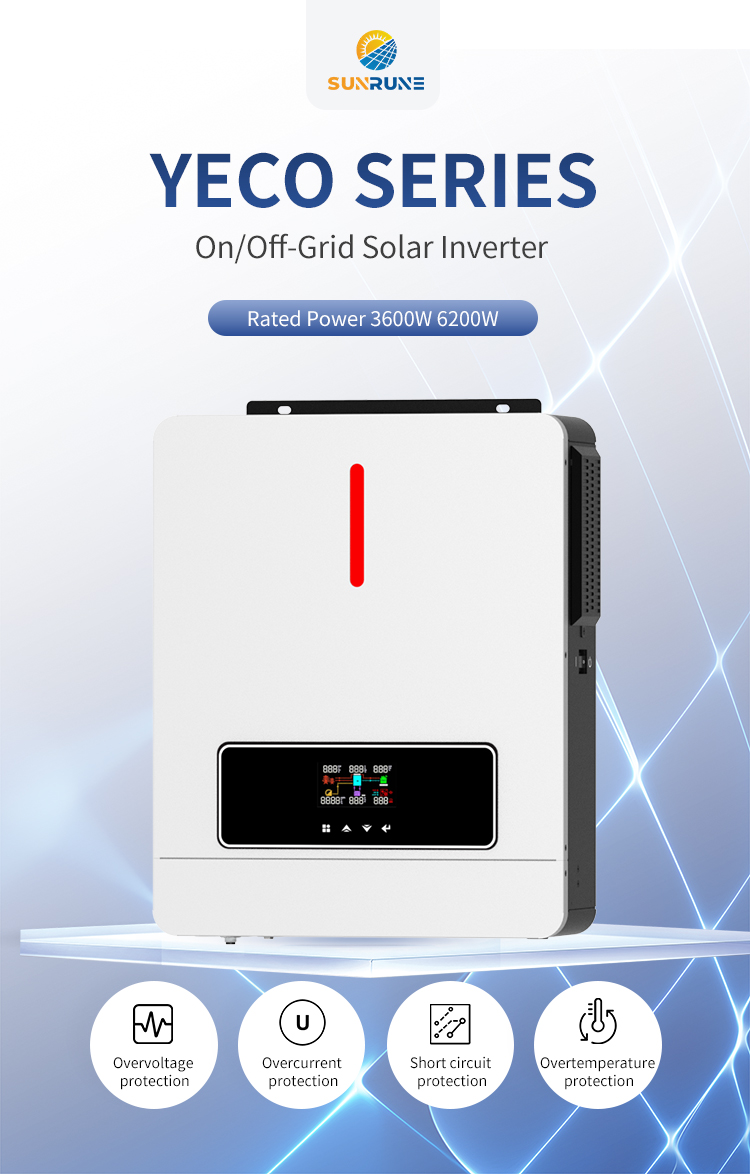

5. This YECO model inverter is specifically designed for both grid-tied and off-grid solar power systems, providing reliable and stable pure sine wave output.
6. This solar inverter has a wide, high PV input voltage range of 60-500VDC, enabling it to handle varying solar panel setups and maximize energy conversion efficiently.
7. Equipped with a built-in lithium battery auto-activation feature, the solar inverter ensures optimum performance and extended battery life, maintaining its efficiency over time.
8. The solar inverter integrates a built-in 120A MPPT (Maximum Power Point Tracking) solar charge controller capable of providing a maximum charging power of 6200W (for 3.6KW systems) or 6500W (for 6.2KW systems), optimizing the charging efficiency of the solar panels.
9. To withstand and thrive in harsh environments, the inverter includes a built-in anti-dust kit, ensuring its durability and reliability.
10. It is also equipped with an intelligent battery charging system that optimizes battery life by efficiently managing the charging and discharging processes.

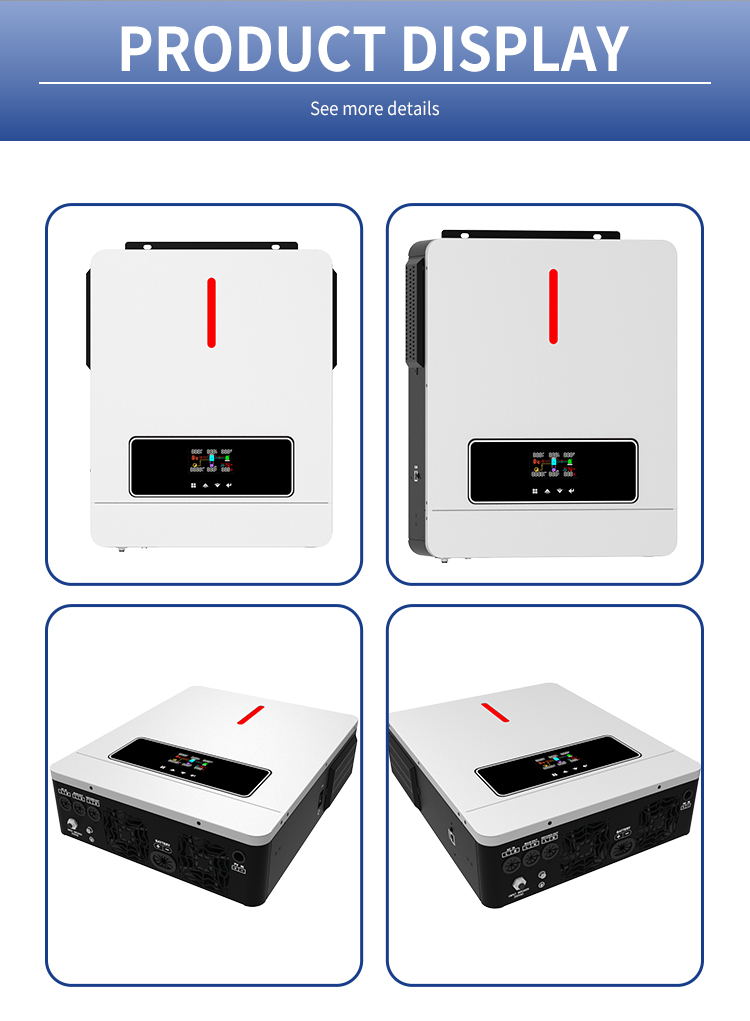

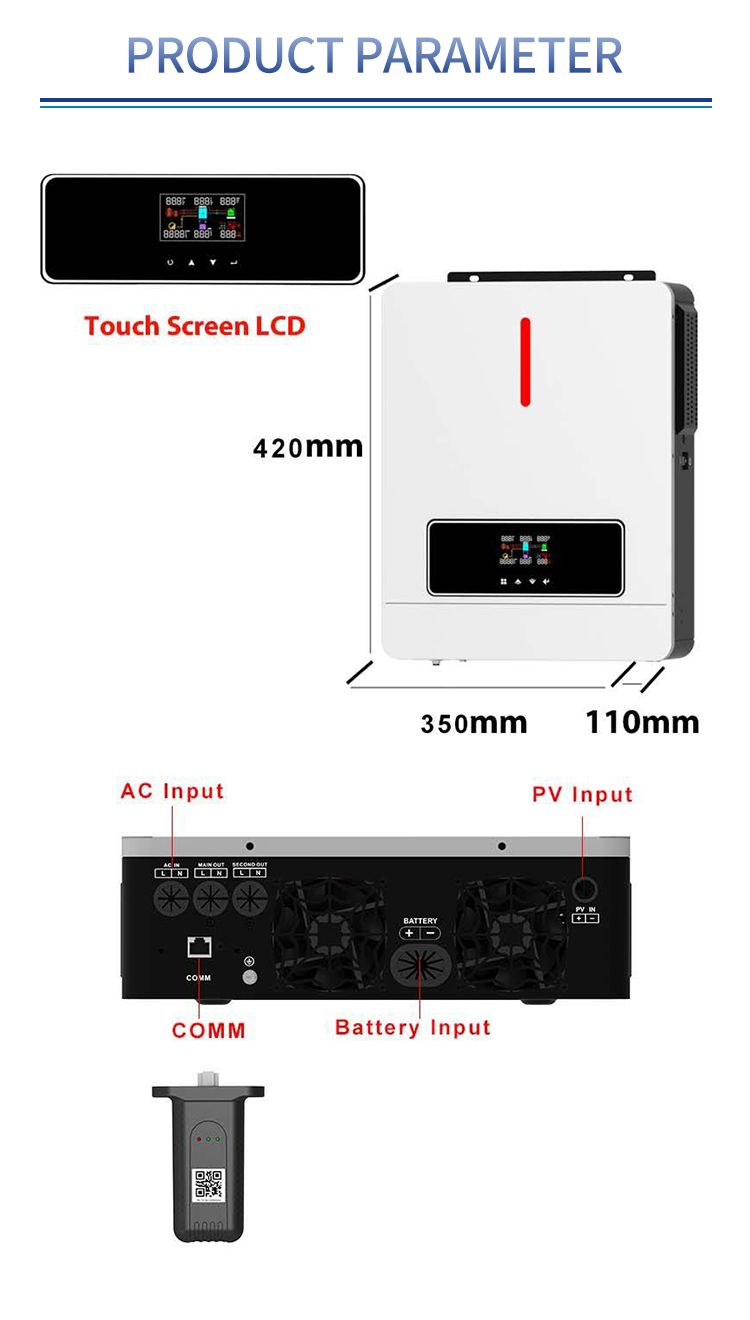

Product picture
