Power Storage Rack Mount Solar Energy Storage Lifepo4 Battery

Short Description:

1. Built-in BMS intelligent system, that’s safer to use.
2. Can be adapted to the mainstream inverters in the market.
3. After professional BMS and battery matching validation test.
4. Positive and negative poles are designed with convenient sockets, plug and play.
5. Small size, advanced structural and electrical design, and fluid simulation design.
6. Cycle life of more than 2000 cycles, almost eliminating any memory effect.

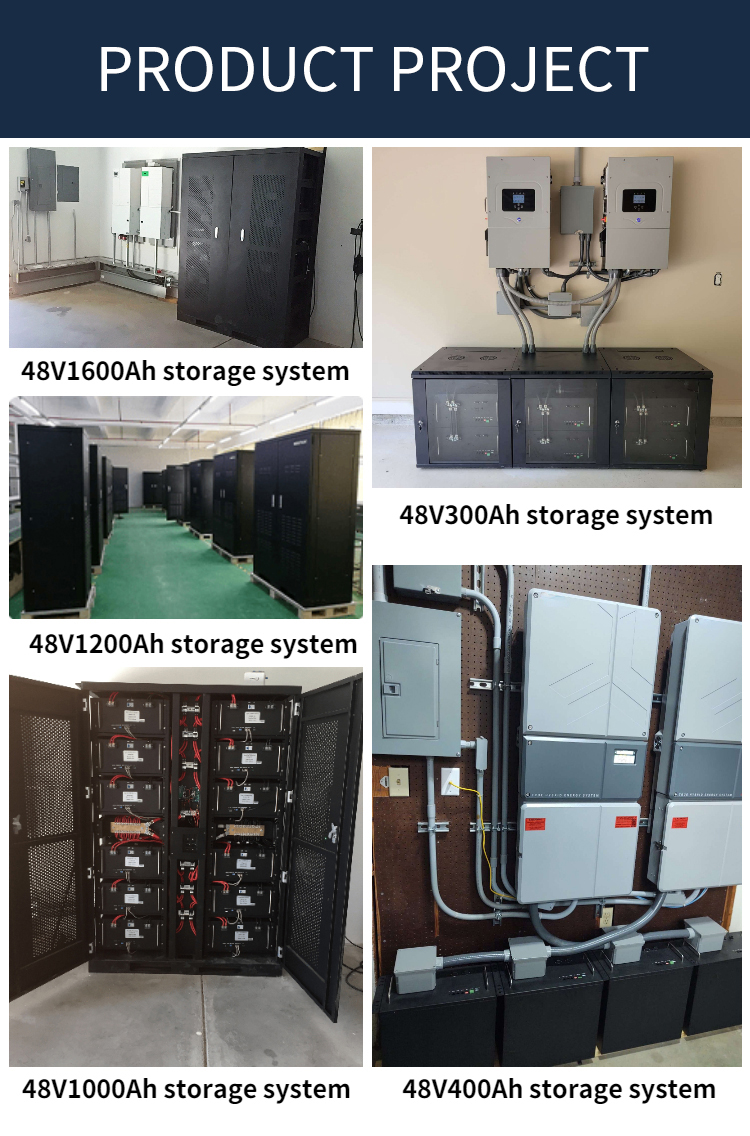

7. Widely used in telecom base stations, commercial energy storage, UPS, and residential energy storage systems.

Send email to us

Subscribe us

Product Detail

Product Tags

Feature

1. SUNRUNE 51.2V lifepo4 rack mounted battery management system boasts an impressive level of safety protection, including overcharge, over current, over discharge, temperature, precharge, voltage balance, short circuit, and open circuit protection. All of them due to its built-in BMS intelligence.
2. At SUMRUNE，we have designed our rack mount batteries to be small in size and light in weight, with an advanced structural and electrical design, as well as fluid simulation design.
3. This rack mounted batteries are undergone professional BMS and battery matching verification tests to ensure the highest level of quality and safety.
4. SUNRUNE Rack-mounted batteries have a cycle life of over 2000 cycles, virtually eliminating any memory effects, and also have a very low self-discharge rate, which make this battery an effective choice for your energy storage needs.
5. With high energy density and a stylish look, our 51.2V rate-mounted LiFePO4 battery is widely used in telecom base stations, commercial energy storage, UPS and residential energy storage systems.

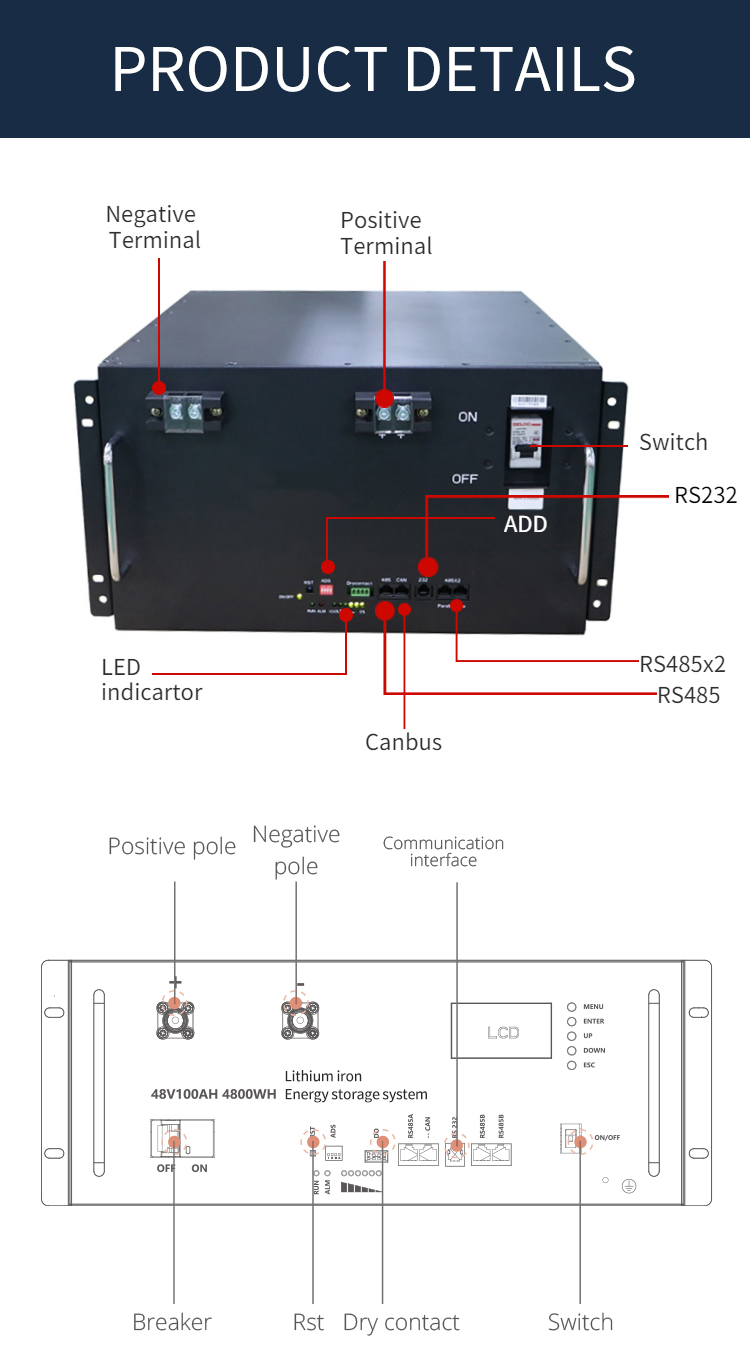

6. With the positive and negative poles are designed with convenient sockets,Just plug and use.
7. SUNRUNE Rack-mounted battery can be adapted to the mainstream inverters on the market.

Product Paraments

Basic Parameters	YZ-4850	YZ-48100	YZ-48150	YZ-48200
Nominal Voltage (V)	51.2	51.2	51.2	51.2
Nominal Capacity (Ah)	50	100	150	200
Power (Wh)	2560	5120	7680	10240
Dimension (mm)	445385155mm	L460xW442xH177	L443xW442xH277	L680xW442xH185
Weight (Kg)	26	45/47	60	88/92
Discharge Cut-off Voltage (V)	40.5(15S)43.2(16S)	40.5(15S)43.2(16S)	40.5(15S)43.2(16S)	40.5(15S)43.2(16S)
Charge Cut-off Voltage (V)	54.7(15s)58.4(16s)	54.7(15s)58.4(16s)	54.7(15s)58.4(16s)	54.7(15s)58.4(16s)
Communication Port	RS485,RS232, CAN	RS485,RS232, CAN	RS485,RS232, CAN	RS485,RS232, CAN
Single string quantity(pcs)	8	8	8	8
Working Temperature/"C	-20~60	-20~60	-20~60	-20~60
Cell serial number (pcs)	15s 16s	15s 16s	15s 16s	15s 16s
Humidity	5%~85%	5%~85%	5%~85%	5%~85%
Altitude (m)	<4000	<4000	<4000	<4000
Design life	10+Years (25°C/77°F)	10+Years (25°C/77°F)	10+Years (25°C/77°F)	10+Years (25°C/77°F)
Cycle Life	>6000,25°C/77°F,80%DOD	>6000,25°C/77°F,80%DOD	>6000,25°C/77°F,80%DOD	>6000,25°C/77°F,80%DOD
Certification	CE/UN38.3	CE/UN38.3	CE/UN38.3	CE/UN38.3
