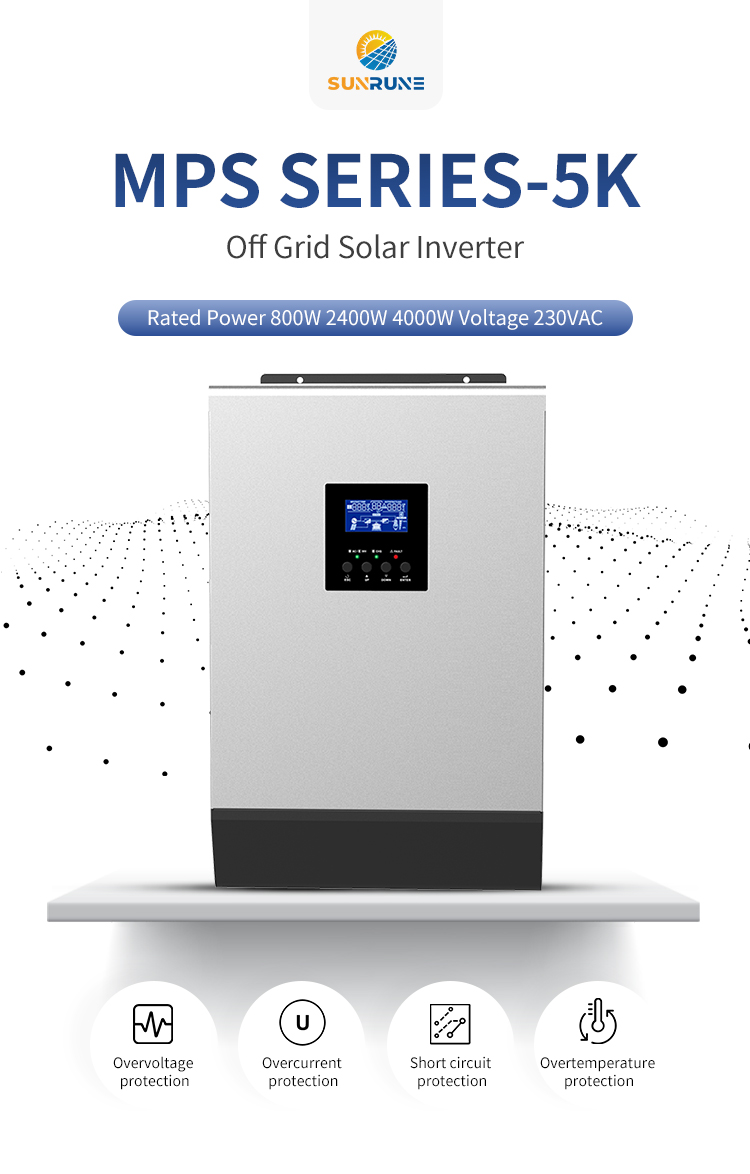

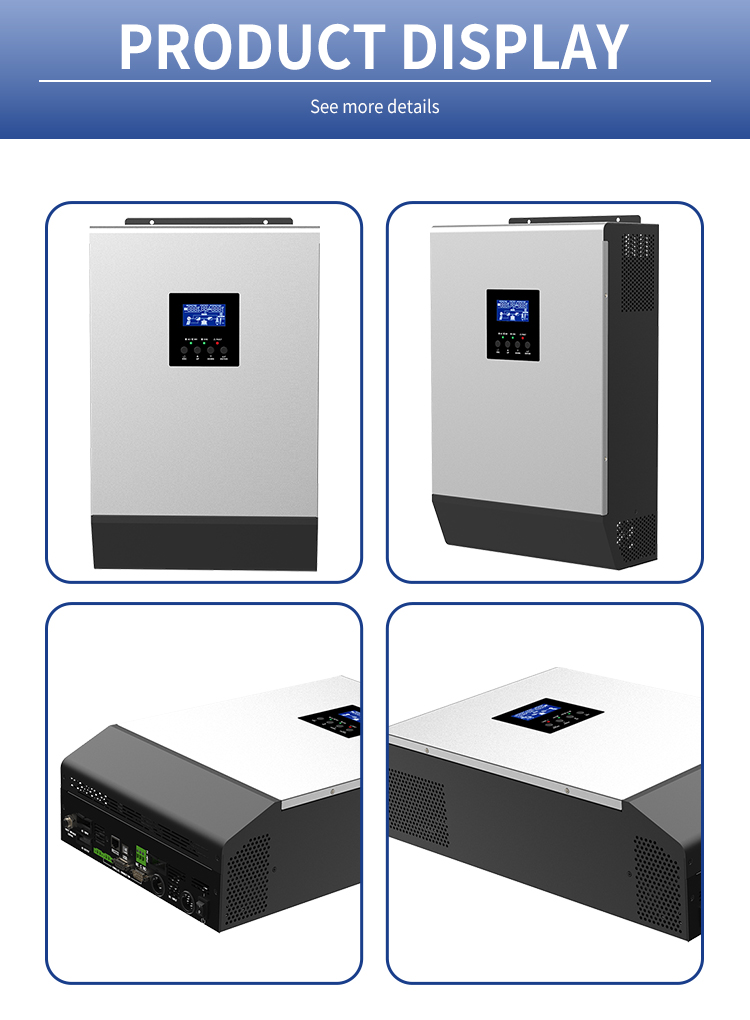

SUNRUNE Pure Sine Wave Solar Inverter MPS-5K Model

Short Description:

1. MPS Solar Inverter is compatible with a wide range of solar panels.
2. WIFI and GPRS connectivity for remote monitoring.
3. Built-in smart battery charging design optimises battery life.
4. Built-in Li-ion battery auto-activation for optimum performance.
5. The inverter has a user-friendly touch screen interface
6. Supports parallel operation of up to 6 units with a maximum capacity of 30KVA
7. The MPS models are equipped with a built-in MPPT solar controller to maximise solar energy conversion.

Product Detail

Product Tags

Product Description

1. Our MPS inverter Built-in 160A (suitable for 7.2KW/8.2KW)/180A (suitable for 10.2KW) MPPT solar charging can maximize the conversion of solar energy into electricity for your home or business, reducing your dependence on traditional energy sources.
2. Our MPS inverters also have a high photovoltaic input voltage range of 90~500VDC, which making them compatible with various solar panels.
3. Our inverter with WIFI and GPRS for IOS and Android devices, you can now monitor your solar system anytime anywhere.
4. Our inverter Built-in anti-dusk kit for harsh environment and with Smart battery charge design to optimize battery life.
5. Our inverter Built-in lithium battery auto-activation ensures your battery is always at peak performance level, giving you the best output.
6. With a touch button interface that is both user-friendly and intuitive.
7. Parallel operation with up to 6 units (30KVA) only available for 5KVA.

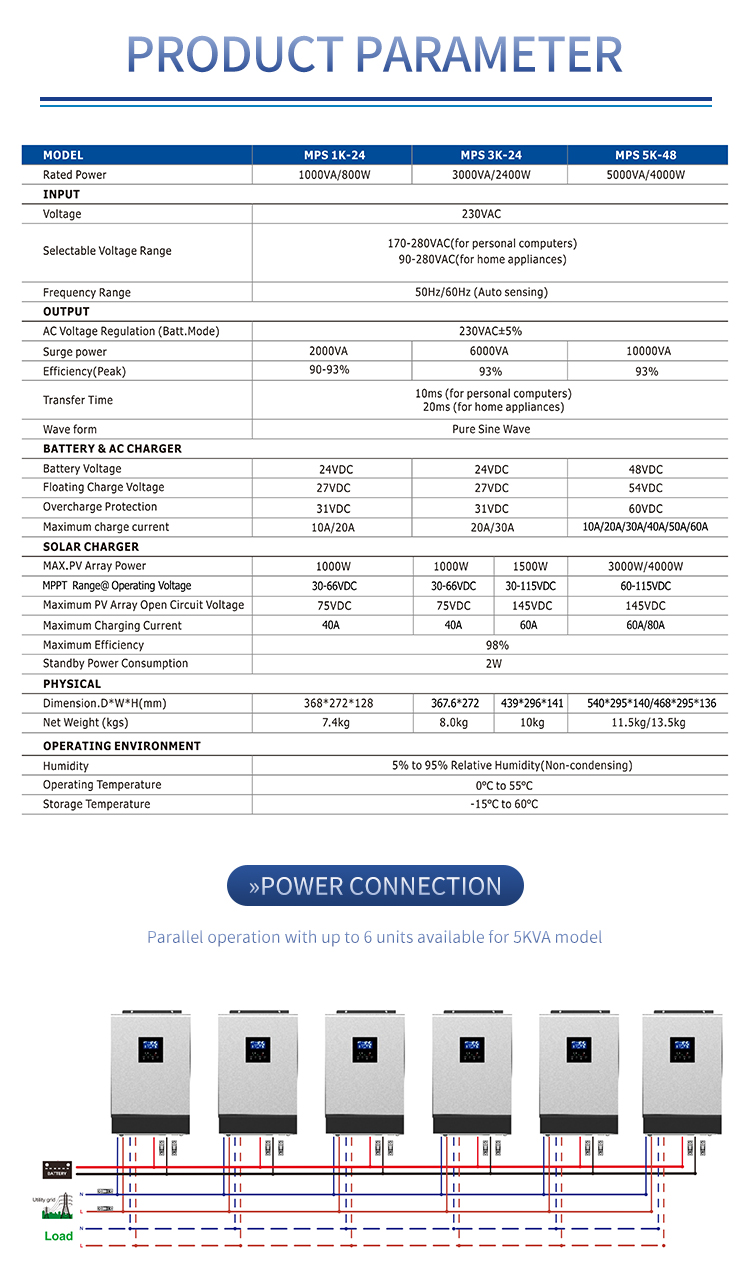

Product Paraments

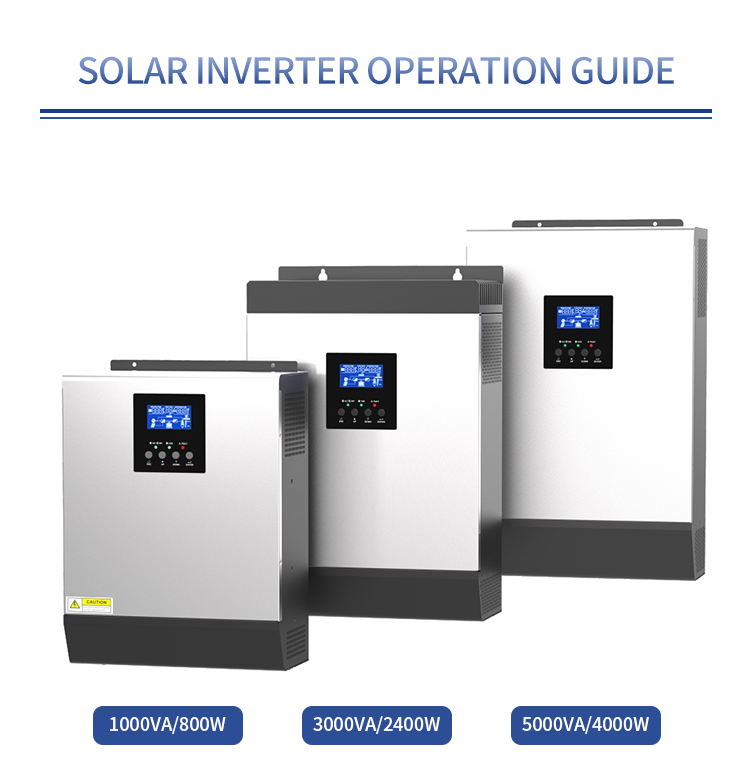

MODEL lSolar MPS 1K-24 lSolar MPS 3K-24 MPS 5K-48
Rated Power 1000VA/800W 3000VA/2400W 5000VA/4000W
Nominal Voltage 230VAc
Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range 50,60Hz(Auto sensing)
AC Voltage Regulation (Batt.Mode) 230VAC±5%
Surge Power 2000VA 6000VA 10000VA
Efficiency(Peak) 90% 93% 93%
Transfer Time 10ms(for personal computers) 20ms(for home appliances)
WaveFORM Pure Sine Wave
Battery Voltage 24VDC 24VDC 48VDC
Floating Charge Voltage 27VDC 27VDC 54VDC
Overcharge Protection 31VDC 31VDC 60VDC
Maximum charge current 10A/20A 20A/30A 10A/20A/30A/40A/50AV60A
MAX. PV Array Power 1000W 1000W/1500W 3000W/4000W
MPPT Range@ Operating Voltage 30-66VDC 30-66VDC/30-115VDC 60-115VDC
Maximum PV Array Open Circuit Voltage 75VDC 75VDC/145VDC 145VDC
Maximum Charging Current 40A 40A/60A 60A/80A
Maximum Efficiency 98%
Standby Power Consumption 2W
Dimension. D*W*H(mm) 368*272*128 439*296*141 540*295*140/468*295*136
Net Weight(kg) 7.4kg 8kg/10kg 11.5kg/13.5kg
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0℃ to 55℃
Storage Temperature -15℃ to 60℃
